Technical Info
Sauna Specifications

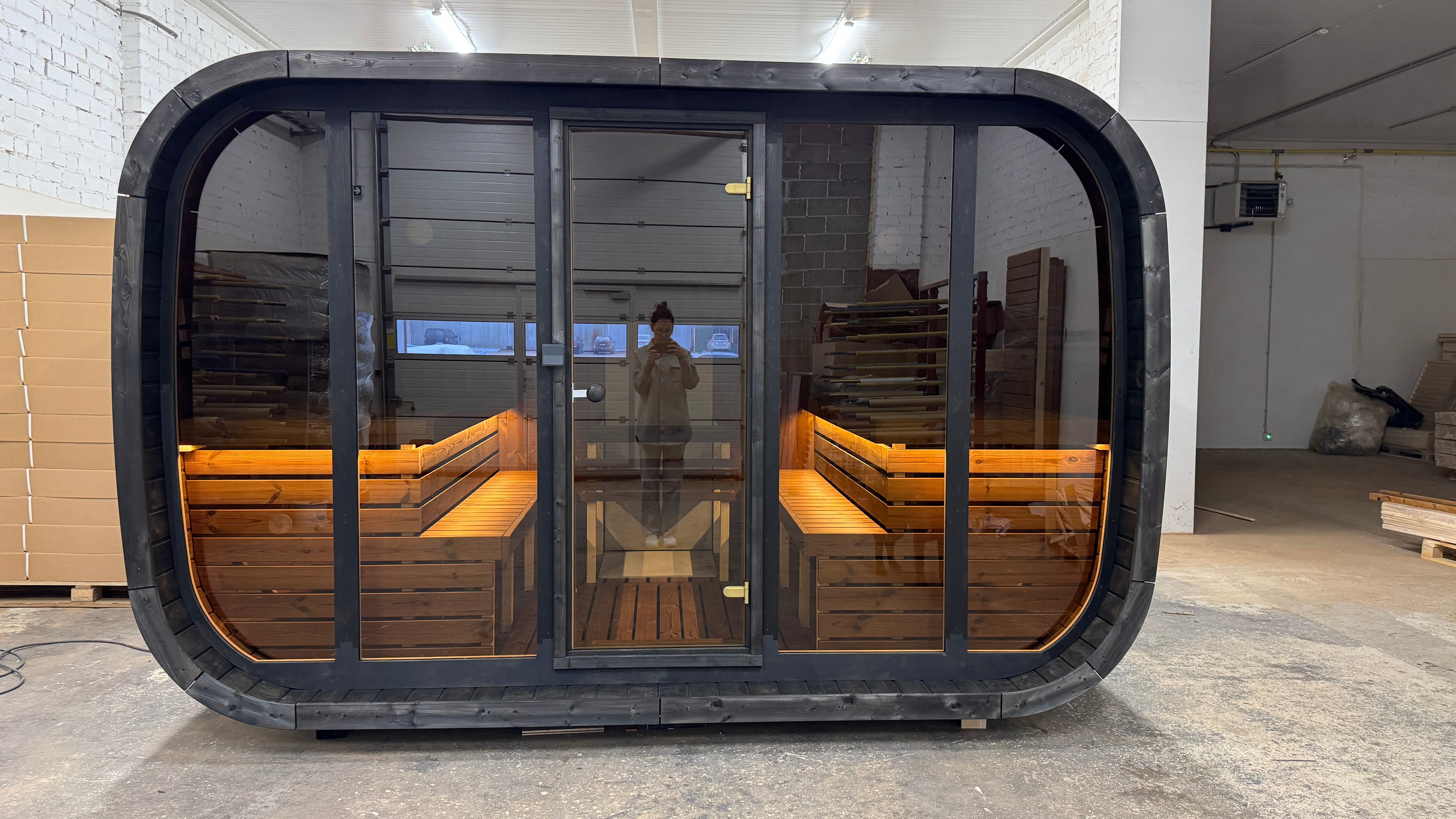

| External Dimensions | Width: 420 cm, Height: 230 cm, Length: 310 cm, Depth: 230 cm |
|---|---|
| Cubic Volume | 8.5 m³ |
| Walls | 28 mm / 42 mm thickness |

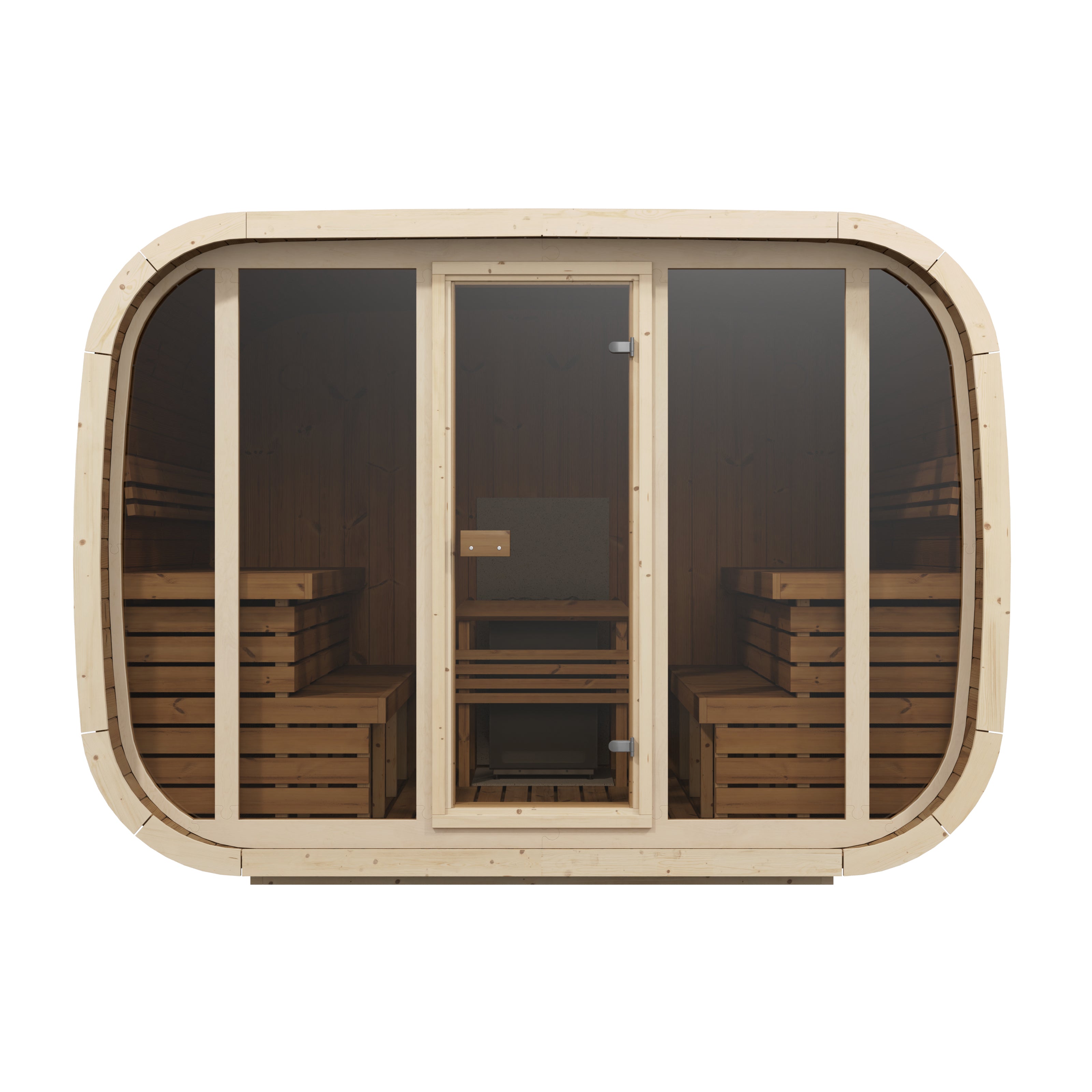

| Door Dimensions | 189 × 69 cm |

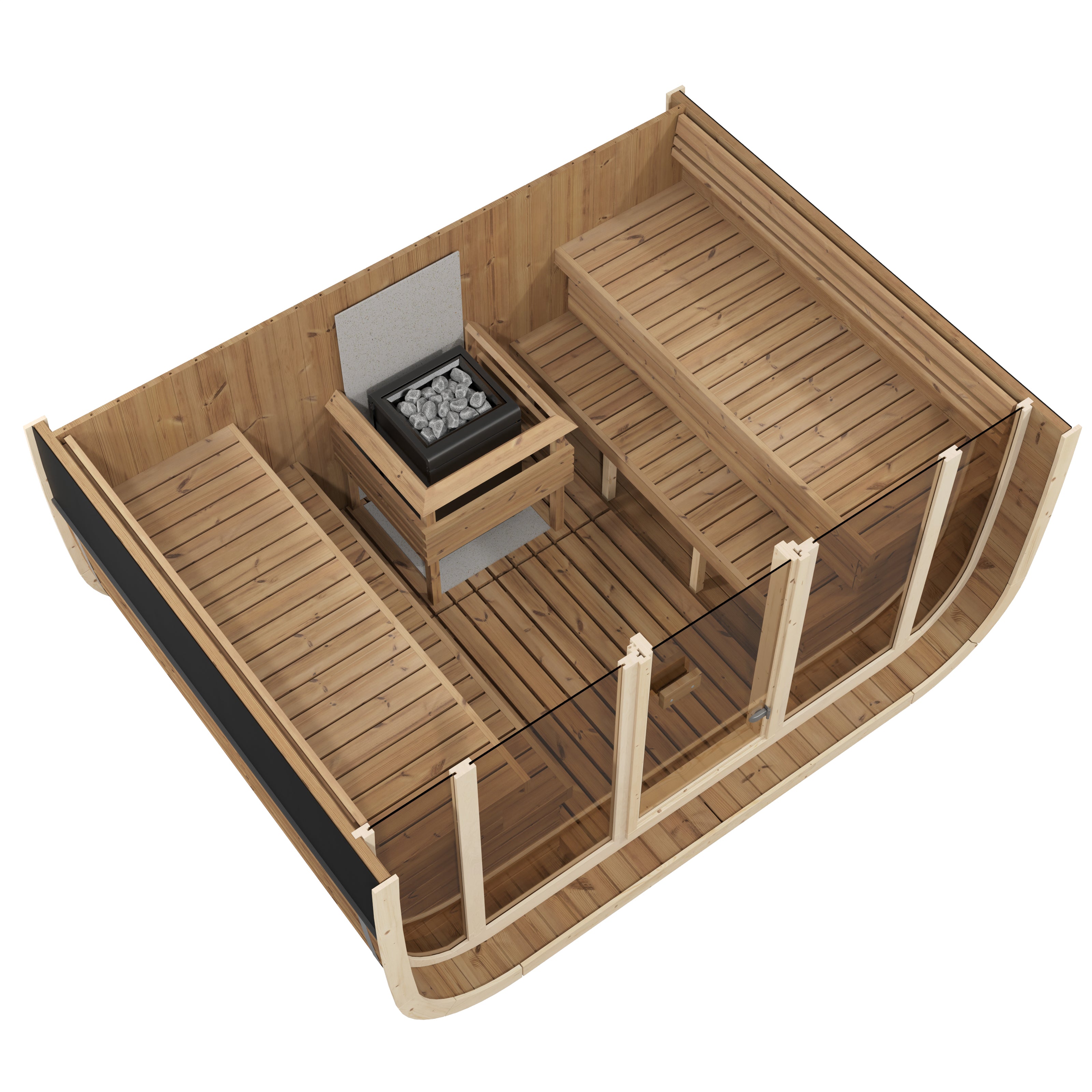

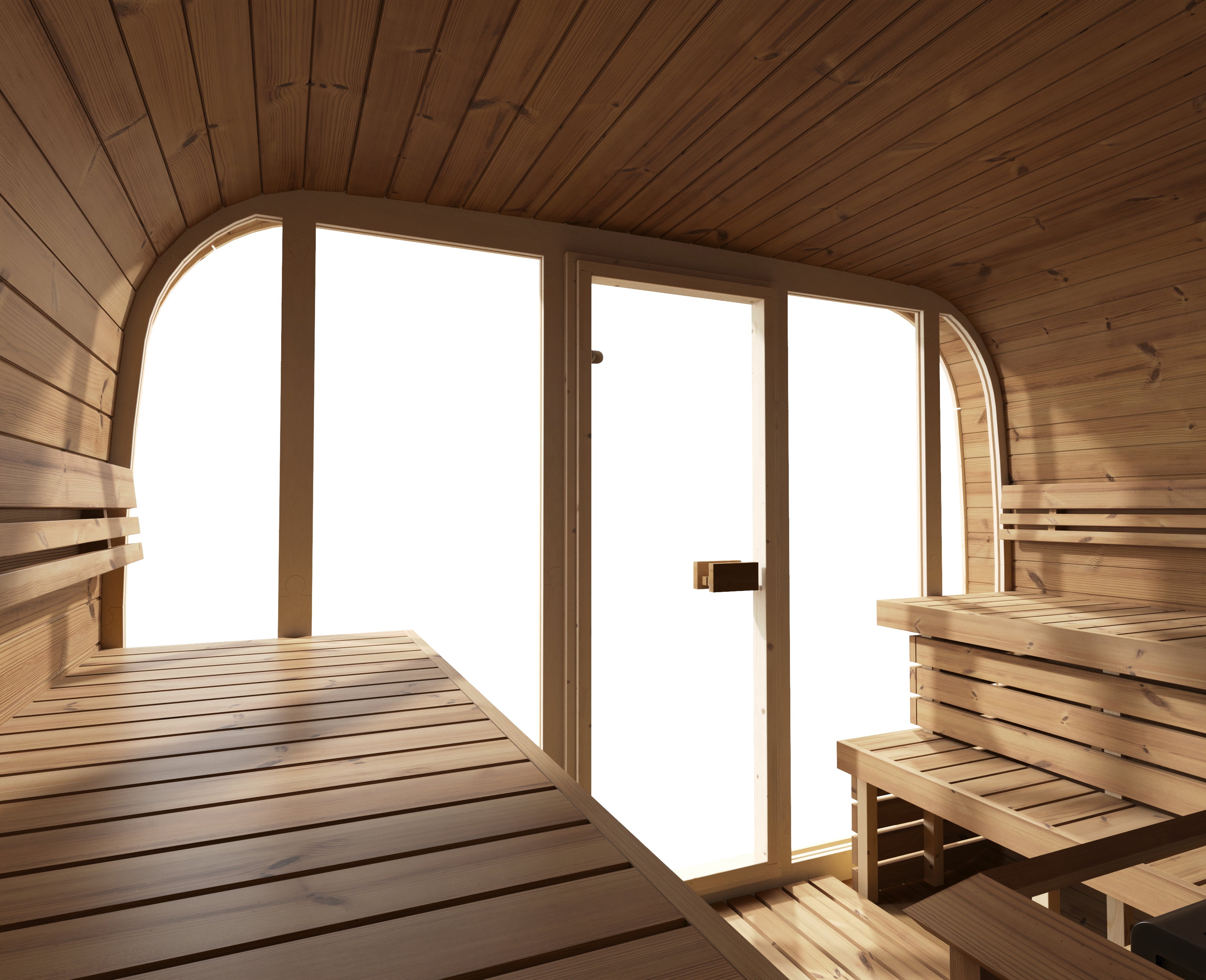

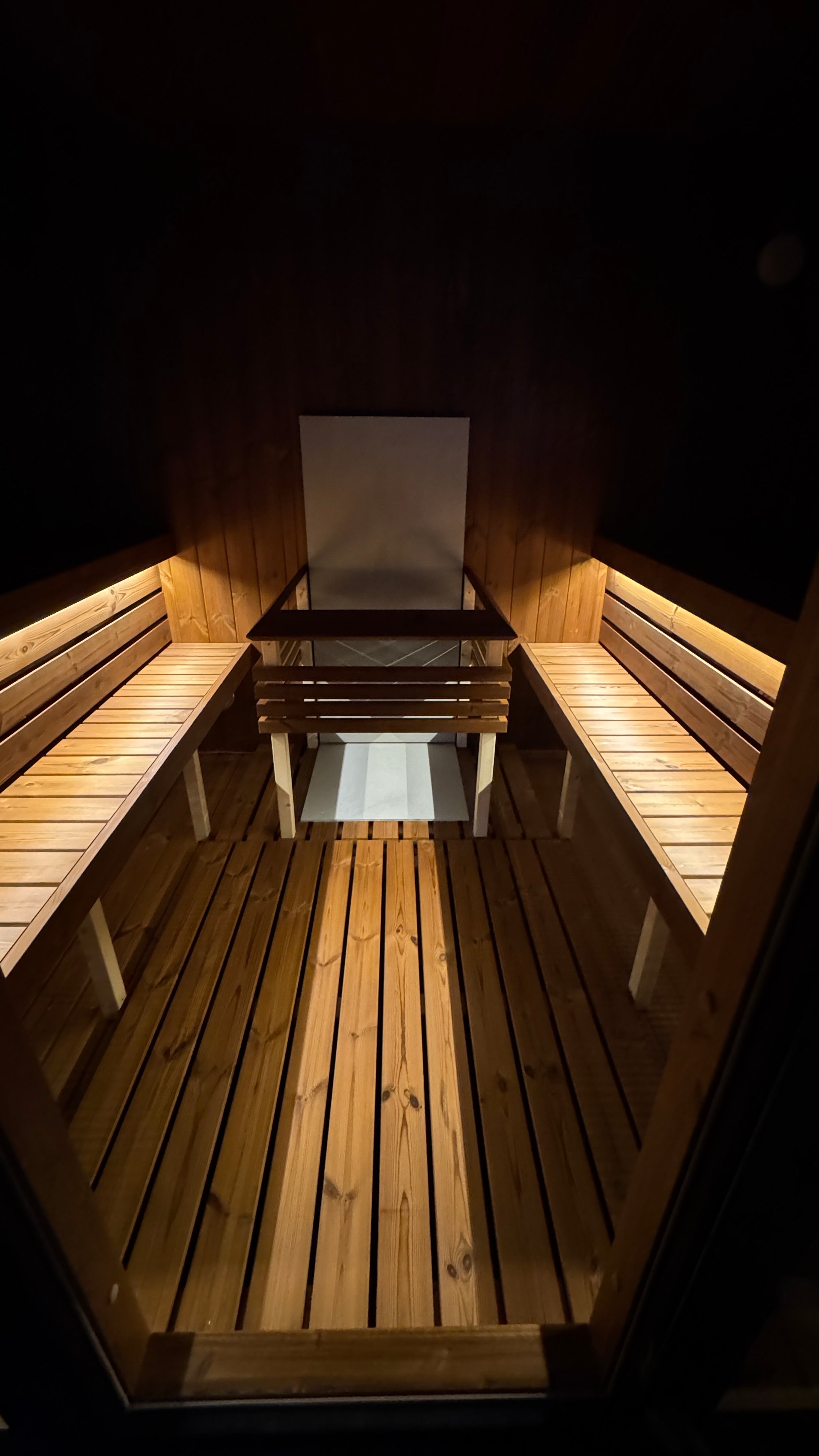

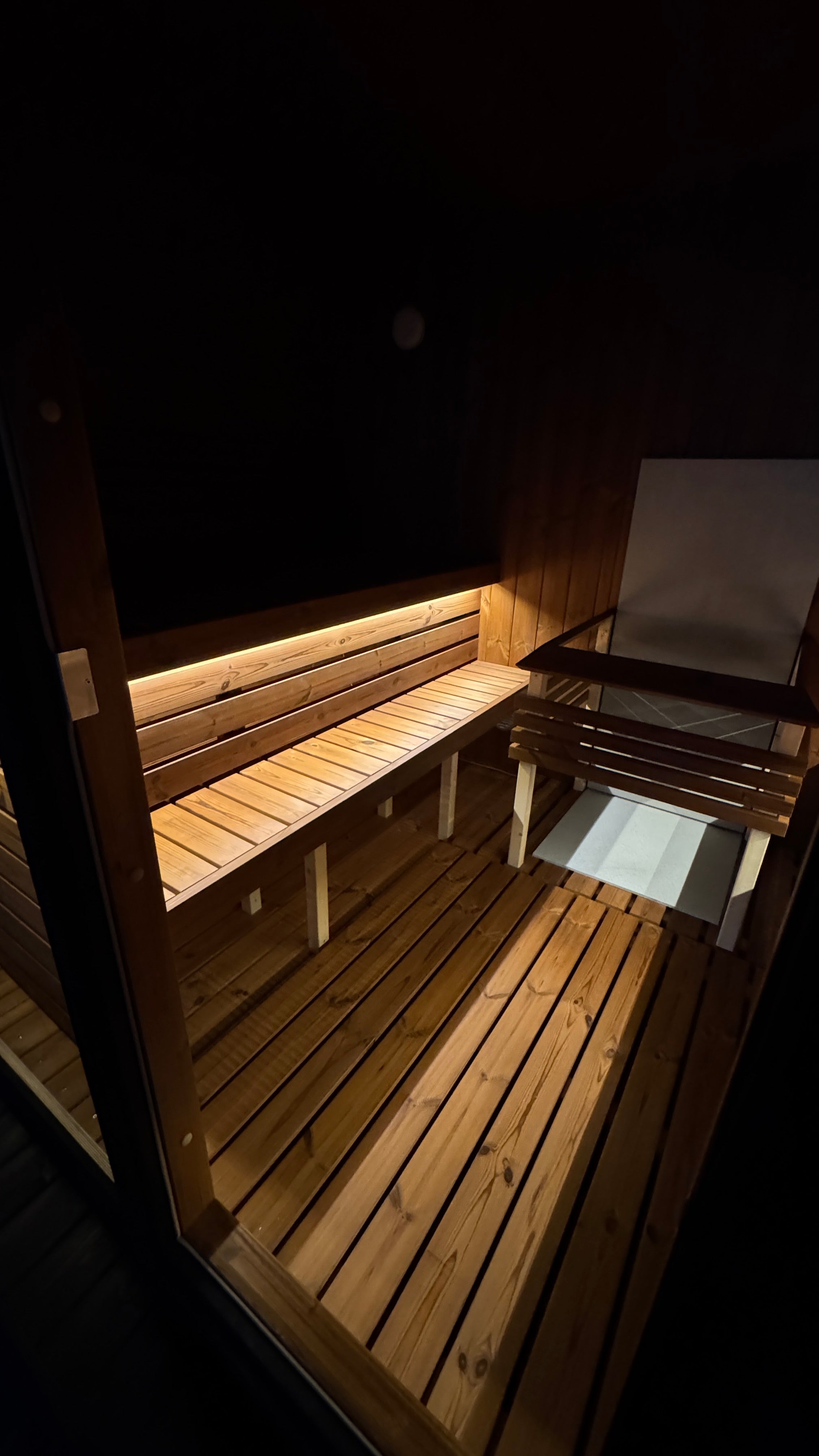

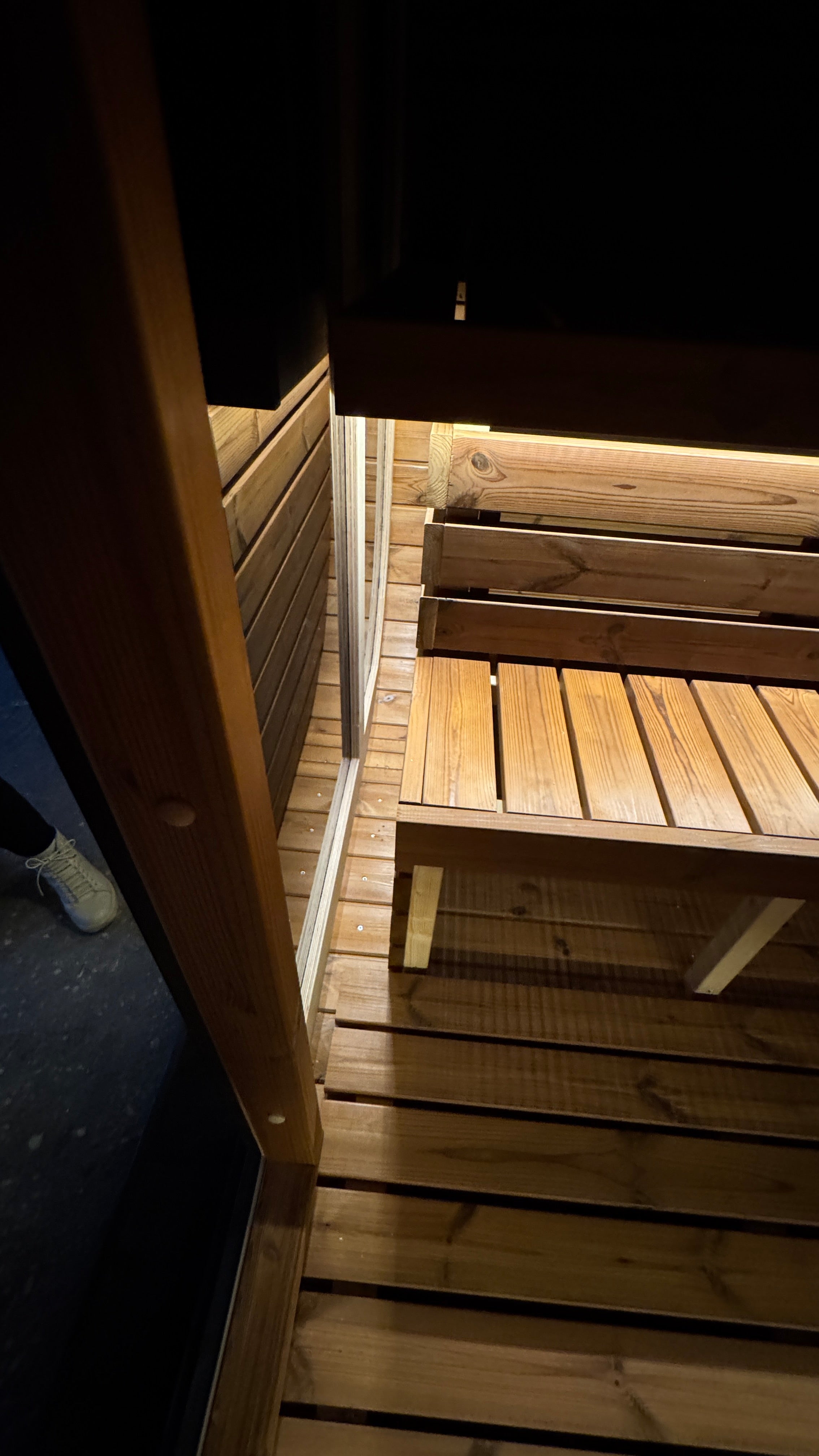

| Benches | Thermal Aspen / Thermal Pine / Nordic Spruce / Aspen |
| Number of People | 4–6 people |
| Rooms | 2 |

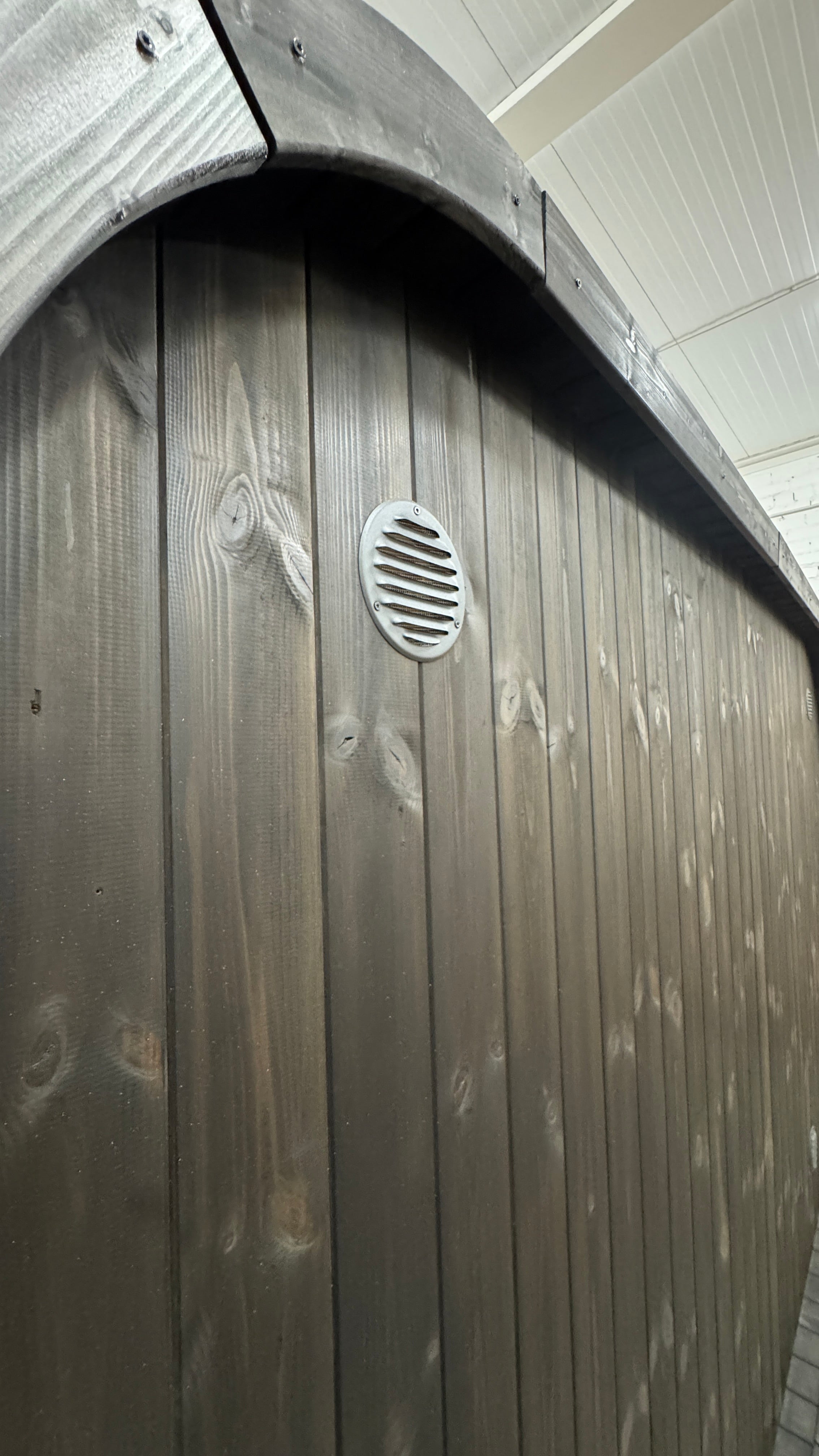

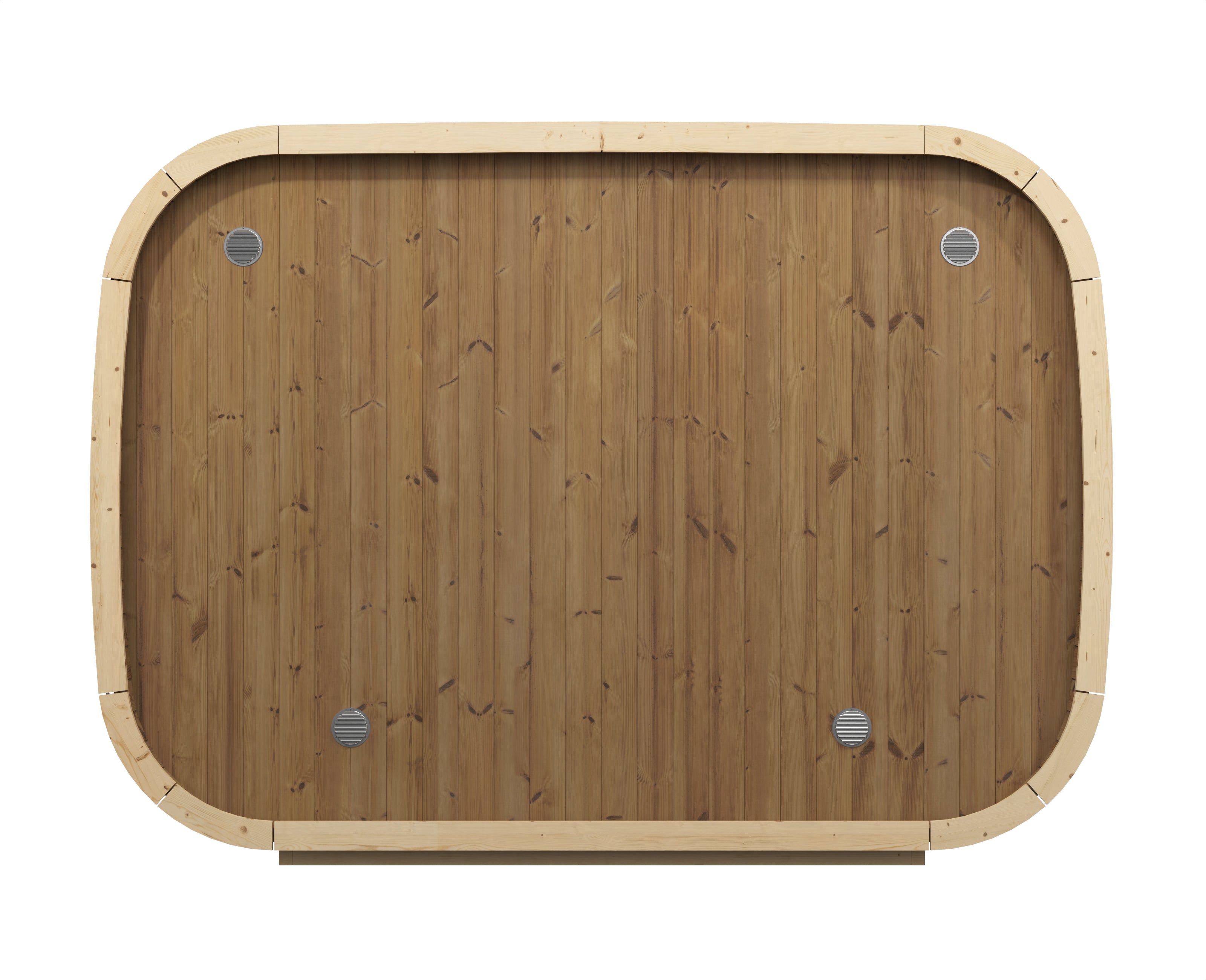

| Included Accessories | Benches, heater cover, steel straps, ventilation system, assembly kit, detailed instructions |
| Packaging | 1 pallet (235 × 120 × 136 cm, weight ~1000 kg) |
| Heater Compatibility | Various models of wall heaters with thermal protection |

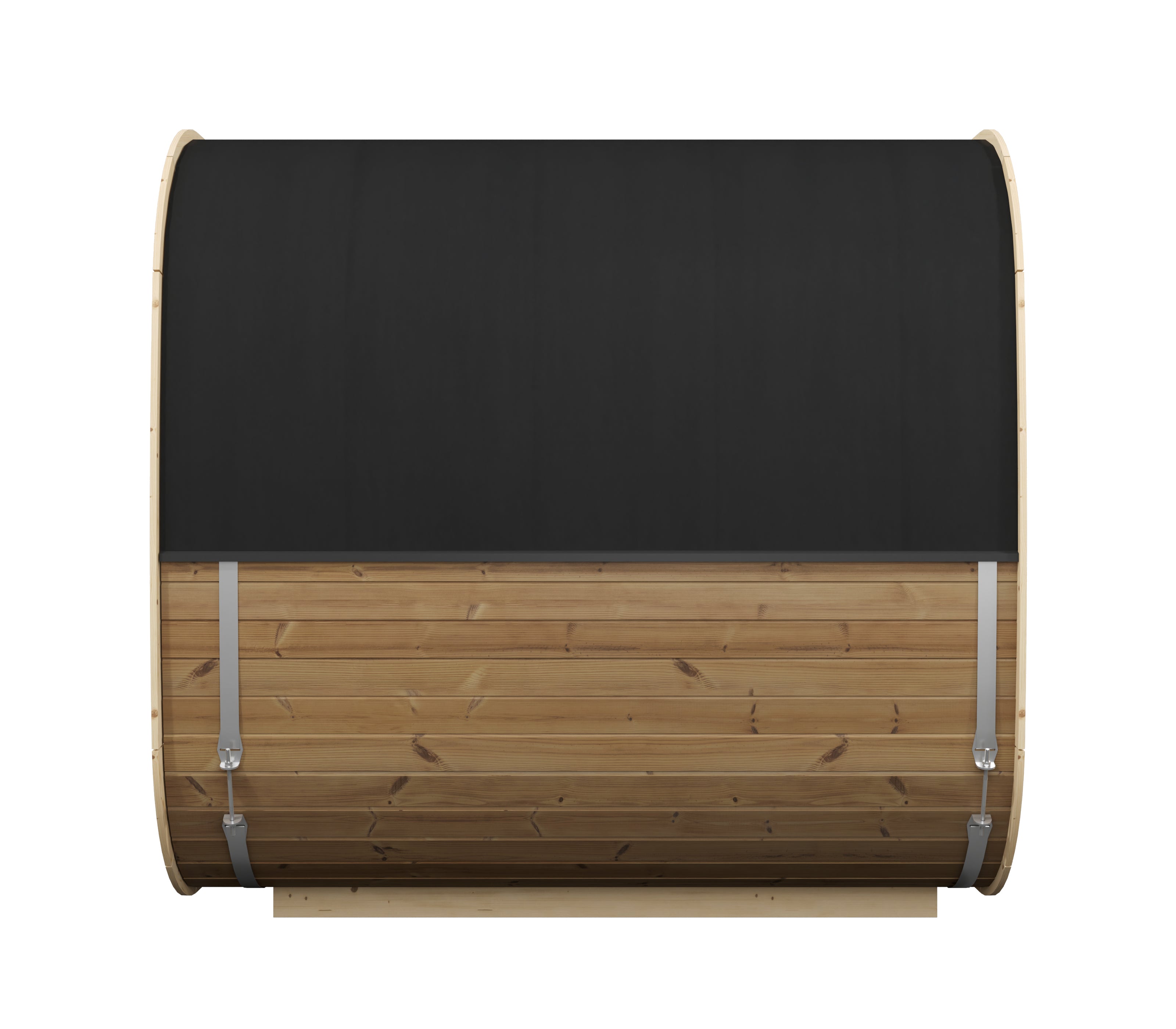

| Personalization Options | Choice of wood type, heater model, glass type in front panel; EPDM Roof |
The electrical supply you need depends on the kW rating of your sauna heater. We strongly recommend speaking with a qualified electrician before starting any installation.
Most home saunas in the UK use a dedicated power supply, similar to what’s used for an electric shower or cooker. Domestic sauna heaters typically run on a single-phase 230V supply.
To work out the electrical current (Amps), use this formula:
Watts ÷ Volts = Amps
Example:
6kW (6000W) ÷ 230V = approximately 26 Amps
Typical Guide for Domestic Sauna Heaters
| Heater Power | Current Draw | Suggested Cable Size (Single-Phase) |
|---|---|---|
| 2.3 kW | 10 Amps | 1.5 mm² |
| 3.0 kW | 13 Amps | 2.5 mm² |
| 3.6 kW | 15 Amps | 2.5 mm² |
| 4.5 kW | 19 Amps | 2.5–4.0 mm² |
| 6.0 kW | 26 Amps | 4.0 mm² |
| 8.0 kW | 35 Amps | 6.0 mm² |
| 9.0 kW | 40 Amps | 6.0 mm² (or larger, depending on distance) |
Important Notes
- Cable size depends on cable length, installation method, and other on-site factors.
- Always follow the advice of a qualified electrician.
- All installations must comply with current UK wiring standards (BS 7671).
